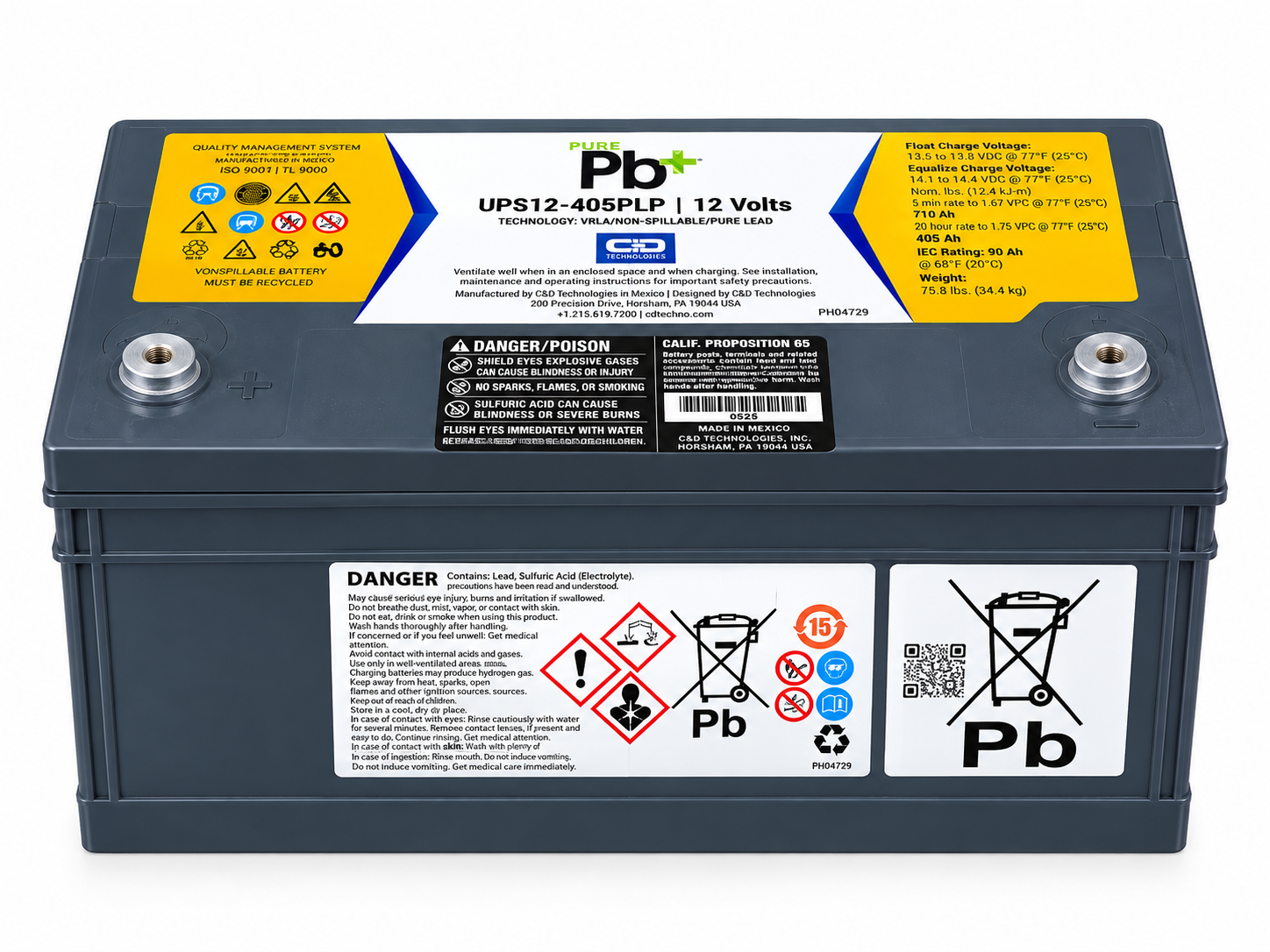

UPS12-405PLP 12V UPS BATTERY

Sale!
UPS12-405PLP 12V UPS BATTERY

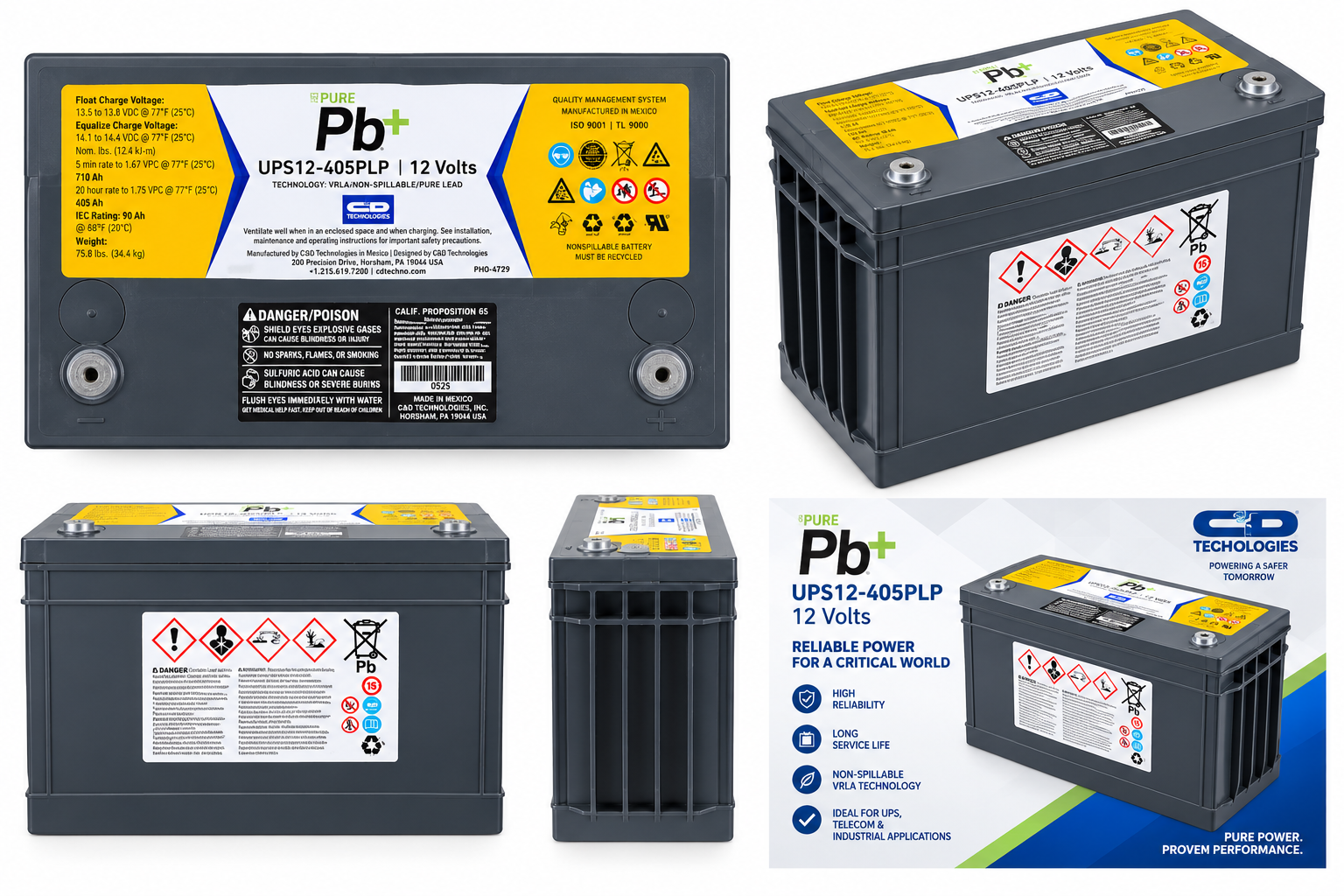

UPS12-405PLP 12V UPS BATTERY - Image 2

UPS12-405PLP 12V UPS BATTERY

Original price was: $375.00.Current price is: $345.00.

dynasty

+
Specification Value
Model C&D Dynasty UPS12-405PLP
Item / Part Number UPS12-405PLP
Nominal Voltage 12 VDC
Capacity 104 Ah (C20)
Battery Type Pure Lead AGM / VRLA
Chemistry / Construction Sealed AGM (VRLA), Maintenance-Free
Cells per Battery 6
15-Minute Rating 402 WPC @ 1.67 VPC
Maximum Discharge Current 800 A
Short-Circuit Current 4,700 A @ 0.1 sec
Product Length 13.42 in
Product Width 6.80 in
Product Height 8.52 in
Bottom Length 10.17 in
Bottom Width 6.65 in
Net Weight 75.8 lb (34.4 kg)
Terminal Threaded Insert, 0.250 in (1/4-20 UNC)
Terminal Torque 110 in-lb (12.4 N·m)
Maintenance Maintenance-Free
Application High-Rate UPS / Critical Power / Standby
Compatibility Designed for high-rate UPS and standby applications, including data centers, telecommunications, emergency power systems, and other mission-critical backup power applications.
Warranty 5 Years

Available on backorder

Add to quote
SKU: UPS12-405PLP Categories: , Brand:

Description

Dynasty Battery UPS12-405PLP C&D

Dynasty Battery UPS12-405PLP

  • 12 Volt 104 AH
  • AGM Flame retardent Case
  • Size: 13.42″L x 6.80″W x 8.52″H
  • 12+ year design life @ 25˚C



UPS12-405PLP C&D BATTERIES

The UPS12-405PLP Series boasts an extended lifespan capable of providing true deep cycle power. This battery is built with C&D’s premier no leak AGM battery technology. The C&D UPS12-405PLP Pure Lead Plus batteries were created to help ensure long term performance to reliably deliver standby power when average conventional units fail. Power Storage Solutions is an official authorized distributor for the OEM C&D Technologies UPS12-305PLP Pure Lead Plus Series battery.

UPS12-405PLP FEATURES AND BENEFITS

  • Advanced Pure Lead Paste Processing extends service life by 2 years compared with conventional VRLA technologies
  • Published rates to 1 min at end of life
  • Extended life at elevated ambient temperatures
  • Store for 1 year at 77 °F without boost charging
  • 12+ year design life @ 25˚C

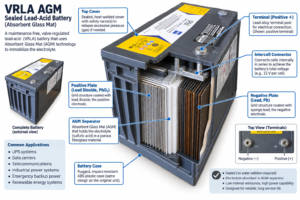

  • Absorbent Glass Mat (AGM) technology for efficient gas recombination
  • Patented Long Life Alloy
  • Minimized grid growth, reduced gassing, and extended battery life
  • Patented UL Recognized Flame arresting vents in each cell for safety
  • Designed with the same recombination, thermal runaway prevention, gassing and flame retardant characteristics of the Telcordia SR-4228 compliant TEL Series products
  • Flame retardant polypropylene case and cover compliant with UL94-V2
  • Advanced proprietary plate processing technology for high active material utilization – results in low float currents
  • Thermally welded and helium leak tested case-to-cover bond ensures a robust leak proof seal
  • Can be operated in any orientation

UPS12-405PLP SPECIFICATIONS

  • Voltage: 12 volt
  • Amp Hour: 140 AH at the 20 hour rate
  • Terminal Type: Threaded copper alloy insert
  • Normal operating temperature range: +74°F (+23°C) to +80°F (+27°C)
  • Float charging voltage: 13.65 ± 0.15 VDC average per 12V unit
  • Flame retardant case and cover meet UL 1778
SpecificationValue
ModelC&D Dynasty UPS12-405PLP
Item / Part NumberUPS12-405PLP
Nominal Voltage12 VDC
Capacity104 Ah (C20)
Battery TypePure Lead AGM / VRLA
Chemistry / ConstructionSealed AGM (VRLA), Maintenance-Free
Cells per Battery6
15-Minute Rating402 WPC @ 1.67 VPC
Maximum Discharge Current800 A
Short-Circuit Current4,700 A @ 0.1 sec
Product Length13.42 in
Product Width6.80 in
Product Height8.52 in
Bottom Length10.17 in
Bottom Width6.65 in
Net Weight75.8 lb (34.4 kg)
TerminalThreaded Insert, 0.250 in (1/4-20 UNC)
Terminal Torque110 in-lb (12.4 N·m)
MaintenanceMaintenance-Free
ApplicationHigh-Rate UPS / Critical Power / Standby
CompatibilityDesigned for high-rate UPS and standby applications, including data centers, telecommunications, emergency power systems, and other mission-critical backup power applications.
Warranty5 Years

Additional information

Weight 75.8 lbs
Dimensions 13.42 × 6.80 × 8.52 in
